一、性能介紹Features：

    具有硬化后Tg值高，CTE值低，易磨板且磨板后凹陷小等特性，適用于MLB/POFV(VOP)等電路板

    With high Tg values after curing, low CTE values, easy scrubbing and sag of small features after scrubbing, suitable for MLB/POFV (VOP) of PCB.

技術資訊Specification:

產品名稱

Product name

項目Items

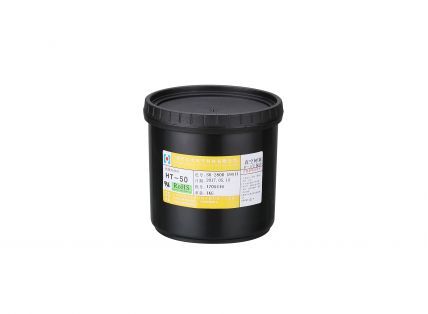

HT-50 SK-2800 G9A11

顏色
 Color

乳白色

Milky white

粘度（主劑）
 Viscosity(main agent)

25℃,粘度計/Viscometer VT-06

450～750 dPa.s(20～25℃)

比重
 Specific gravity

1.5-1.8g/cm3

CTE

α

≤45ppm

β

≤140ppm

烘烤參數
 Curing condition

TH<1.0mm

150℃×60min

1.0mm≤TH＜3.0mm

95℃×10min+110℃×30min+ 150℃×50min

TH≥3.0mm

90℃×30min+110℃×30min+150℃×30min

保存期限
 Shelf life

90天（0-5℃以下儲藏）
 90days(storage in 0-5℃)

附著力
 Adhesion

100/100

鉛筆硬度
 Hardness

6H

包裝
 Potting

1kg/桶
 1kg/ pot

三、操作程序Process recommendations:

                  產品名稱

Product  name                  項目Items

HT-50 SK-2800 G9A11

生產參數
 Production parameters

解凍

Cooling

常溫條件下放置6小時

Place 6 hours at room temperature

4-6小時

4-6hours

攪拌

Mixing

不攪拌或真空攪拌

Use as it is or after vacuum stirring

30-45min.

印刷條件

Printing condition

網塞，鋁片或真空機塞

Mesh plug, aluminium sheet or vacuum machine


刮刀

Squeegee

硬度 Hardness

70N

厚度 Thickness

20mm

角度 Angle

5-10度

5-10degree

壓力 Pressure

5-10Mpa

速度 Speed

20-100mm/s

硬化條件Curing condition

TH<1.0mm

150℃×60min


1.0mm≤TH＜3.0mm

95℃×10min+110℃×30min+ 150℃×50min


TH≥3.0mm

90℃×30min+110℃×30min+150℃×30min


整平 leveling

內層，次外層板 inner layer, outer layer


打磨 Polish

1-3次   1-3times


注意事項：
 a. 建議在溫度為20-25度，濕度50-60%RH的無塵環境內操作。
 b. 因每間工廠的烘干設備，生產條件和品質要求各有不同，烘干溫度及時間也有所不同，請進行實驗，測試后方可生產。
 c. 如果發現油墨變粘或無法攪拌時，表明油墨已經過期或因儲存不當而變質，應立即進行油墨的更換。

Notes:
 A. Recommended in the temperature of 20-25  degrees, humidity 50-60%RH clean environment operation
 B. Because each factory's drying equipment, production  conditions and quality requirements are different, drying temperature and  time are also different, please do the experiment, after the test can be  produced.

C.  if the ink becomes sticky or unable to stir, indicates that the ink has expired  or because of improper storage and deterioration, should be immediately  replaced by ink.

注明：以上為建議參數，現場使用時請根據自身工藝設備的實際情況進行調整。

Note: the above is the recommended parameters, on-site use, according to the actual situation of their own equipment to adjust.
