一、性能介紹Features：

可同時用于LDI、LED、普通鹵素光源固化，具有很高的解析度、優異的附著力、抗酸/堿性蝕刻性能，且易于追查瑕疵部分。

Used in LDI, LED and common halogen light source curing, high resolution, excellent adhesion, Acid / alkaline etching resistance, and easiness to track defective parts of product.

技術資訊Specification:

產品名稱

Product name

項目Items

HT-20 LD333

顏色
 Color

變色
 Change color

粘度

Viscosity

25℃,粘度計/Brookfield Viscometer DV2T

10±2dPa.s

固含量

Solid content

50%-55%

開罐后使用期限
 Pot life after mixing

24小時（25℃以下暗處保存）)

24hours (Store in dark place below 25℃)

保存期限
 Shelf life

制造后6個月
 6 months after production

附著力

Adhesion

100/100

鉛筆硬度

Hardness

2H

流速控制
 Flow speed control

90-120sec

解析度
 Resolution

S/L=2mil/2mil

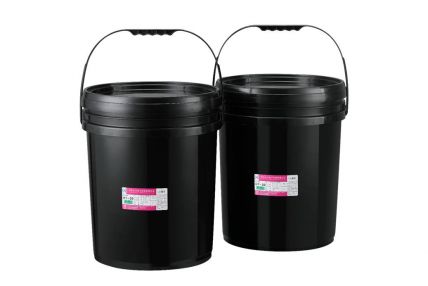

包裝
 Potting

20kg/桶
 20kg/ pot

操作程序Process recommendations:


產品名稱

Product name
 項目Items

HT-20 LD333

注意事項

Notes

開油

Mixing

開蓋后加入開油水手動攪拌3-5min,然后靜置5-10min加入涂布機使用即可

After opening the cover, add the diluent and manually stir 3-5min,  and hold 5-10min,then add into the coating machine


前處理

Pre-treat

磨刷→除油→微蝕→酸洗→水洗→烘干

微蝕速率：40-60μin          Micro corrosion rate: 40-60 μin

酸洗H2SO4濃度：3%-5%     H2SO4concentration: 3%- 5%

Brushing→Remove oil→Micro etching →Acid washing→Rinsin→

Drying

磨痕測試：12-18mm
 水破測試：≧30s

The grind mark test: 12 to 18 mm
 The water break test: ≧ 30 s

涂布

Coating

輥涂生產速度約4.5-5.0m/min

Roller coating production speed 4.5-5.0m/min

1.涂布輪：420目

2.膜厚控制:12-15μm

1.Coating wheel: 420 mesh

2.Film thickness：12-15μm

預烤

Pre-baking

80-85-90-90-70℃    9-10min

預烤后24小時內完成曝光和顯影

Exposure and development within 24 hours after  pre-baking

曝光

Exposure

1.LDI激光的波長：405nm

2.LDI 曝光機，25-35mj/ cm2,7-9級

3.激光掃描時間：10-14秒（掃描時間的長短取決于PCB板的大?。?/span>

1.LDI Wavelength of laser: 405nm

2.LDI Exposure machine，25-35mj/ cm2,7-9Steps

3.Laser scanning time：10-14sec（The length of the  scanning time depends on the size of the PCB board）

曝光后有明顯變色

Obvious discoloration after exposure

顯影

Developing

Na2CO3濃度：0.8-1.2%        Na2CO3 concentration: 0.8 -1.2%
 溫度：28-32℃                Temperature:28-32 ℃
 噴淋壓力：0.5-1.2kg/cm2           Spray pressure: 0.5-1.2 kg/cm2
 時間：40-60sec               Time: 40 to 60 sec


 顯影點控制：50-60%
 Developing point control: 50-60%

蝕刻

Etching

酸性

Acid

一般為酸性氯化銅溶液          General :Cucl2
 溫度：48-52℃                Temperature:48-52 ℃
 噴淋壓力：1.5-2.5kg/cm2           Spray pressure: 1.5-2.5 kg/cm2
 時間40-50sec                 Time of 40-50 sec

A.蝕刻因子：>2
 B.蝕刻均勻性：COV≥85%

A. Etch factor: > 2
 B. Etching uniformity: COV≥85%

堿性

alkali

一般為堿性氯化銅溶液          General :Cucl2

溫度：48-52℃                Temperature:48-52 ℃
 噴淋壓力：1.5-2.5kg/cm2           Spray pressure: 1.5-2.5 kg/cm2
 時間40-50sec                 Time of 40-50 sec

剝膜

Stripping

NaOH：5-8%                 NaOH: 5-8%
 溫度：50-55℃                Temperature: 50-55℃
 噴淋壓力：1.5-2.5kg/cm2          Spray pressure: 1.5-2.5 kg/cm2
 時間：50～80sec              Time: 50 ~ 80sec


注明：以上為建議參數，現場使用時請根據自身工藝設備的實際情況進行調整。

Note: the above is the recommended parameters, on-site use, according to the actual situation of their own equipment to adjust.
